Concrete radar, commonly referred to as Ground Penetrating Radar (GPR), is an innovative, non-destructive technology that allows construction professionals to gain detailed insight into concrete structures without causing any damage. In Brisbane and across Australia, concrete radar is increasingly being adopted as a key tool to improve project accuracy, safety, and efficiency.
This article explores how concrete radar works, its wide range of applications, and the benefits it offers to construction projects of all scales.
What Is Concrete Radar?

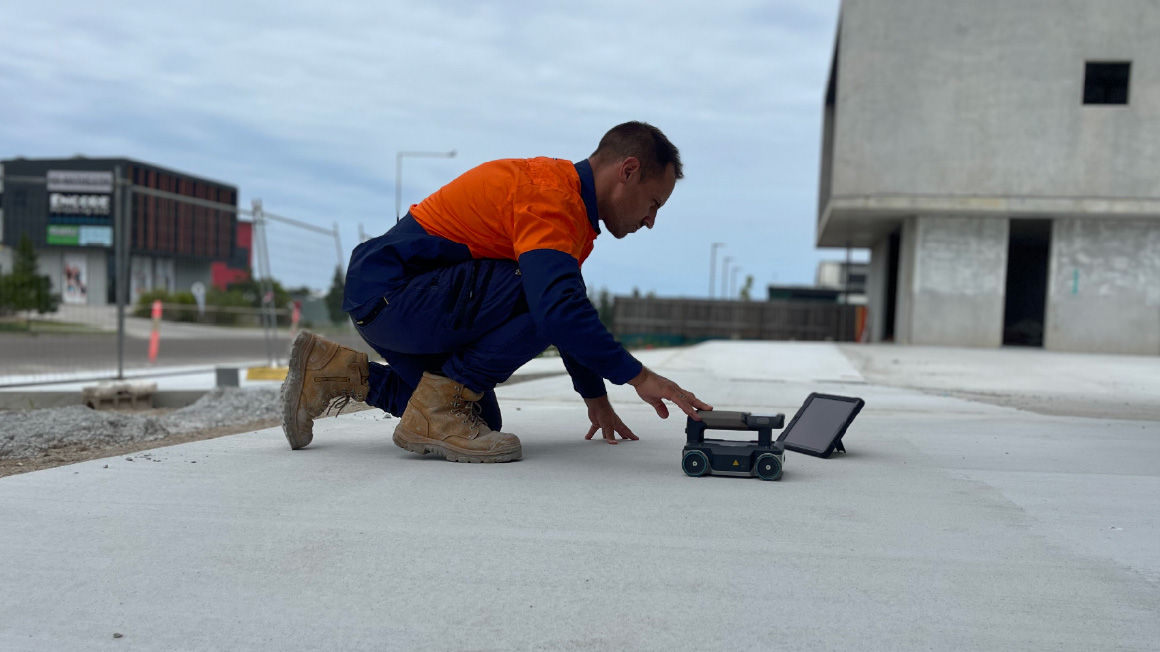

Concrete radar is a type of Ground Penetrating Radar technology designed specifically for scanning concrete structures. It sends high-frequency electromagnetic waves into the concrete and measures the reflections returned from internal features, such as steel reinforcement, voids, pipes, or cracks.
Because it is a non-invasive method, it allows builders, engineers, and surveyors to ‘see’ inside concrete slabs, walls, and beams without drilling, coring, or cutting. This capability reduces the risk of damaging critical structural elements while enabling precise planning and intervention.
How Does Concrete Radar Work?
Concrete radar systems emit short pulses of electromagnetic energy into the material. These pulses travel through the concrete until they encounter an interface between materials with differing dielectric properties — for example, the boundary between concrete and steel reinforcement or an air-filled void.
The radar waves then bounce back to the receiver, which records the time it took for the signal to return and the signal strength. By analysing this information, a technician can generate an image or map showing the location, size, and depth of embedded features.
The depth that radar signals can penetrate depends on several factors, including the frequency of the radar, moisture content of the concrete, and the density and composition of the material. Typically, concrete radar can scan depths of up to 300-400mm, sufficient for most structural and scanning needs in construction.
Common Uses Of Concrete Radar In Construction
Concrete radar has a broad range of practical applications that make it invaluable in the construction sector. Here are some of the most common uses:
1. Locating Reinforcement Bars (Rebar)
One of the primary uses of concrete radar is to detect the position, size, and spacing of steel reinforcement bars within concrete slabs, walls, and beams. This information is essential when drilling or coring is required because it helps avoid damaging structural elements and compromising safety.
Knowing the exact layout of reinforcement before any work begins helps prevent costly mistakes and project delays.
2. Detecting Voids And Honeycombing
Concrete quality is critical to the longevity of any structure. However, during pouring or curing, voids or honeycombing (areas of poorly compacted concrete) can occur. These imperfections can weaken the structure and lead to early failure.
Concrete radar can identify such anomalies by detecting differences in material density. Early detection allows for timely repairs, increasing structural integrity and safety.
3. Mapping Embedded Conduits And Pipes
Renovation and upgrade projects often require knowledge of existing embedded services such as electrical conduits, plumbing pipes, and post-tension cables. Concrete radar can locate these non-metallic or metallic services, helping teams avoid accidental strikes that could cause service disruptions or hazards.
This use is especially valuable in urban environments like Brisbane, where multiple utilities may be layered within concrete.
4. Measuring Concrete Thickness
Determining the thickness of slabs, beams, or walls without damaging them is another valuable application. Concrete radar provides a quick, non-destructive way to verify that elements meet design specifications or to assess the remaining thickness in ageing structures.
5. Identifying Cracks And Delamination
Concrete radar can also detect internal cracks or delamination — where layers within the concrete have separated. These issues may not be visible on the surface but can seriously compromise a structure’s safety. Early detection allows for proactive maintenance.
Benefits Of Using Concrete Radar Technology
Adopting concrete radar technology offers several advantages for construction projects:
- Non-Destructive Testing: Concrete radar does not damage the material, which is crucial for preserving structural integrity during inspections.
- Real-Time Data: Results are generated quickly, allowing teams to make informed decisions on site without lengthy delays.
- Enhanced Safety: By avoiding unnecessary drilling or cutting, risks to workers and structures are reduced.
- Increased Accuracy: Precise location and depth information help avoid costly mistakes and rework.
- Versatility: Concrete radar can be used in various phases of construction—from initial design to ongoing maintenance and forensic analysis.
These benefits contribute to smoother project workflows, better quality outcomes, and cost savings.
Concrete Radar In Action: Brisbane Construction Context
Brisbane’s construction sector has embraced concrete radar for projects ranging from residential developments to major infrastructure.
- High-rise buildings: Scanning floors and walls for reinforcement layouts and embedded services before fit-outs or upgrades.
- Road and bridge construction: Locating embedded rebar and utilities before drilling or cutting concrete elements.
- Heritage restoration: Assessing the condition of historic concrete structures without damaging them.
- Industrial and commercial facilities: Mapping embedded pipes and cables to support maintenance and expansion projects.
The technology’s ability to provide a clear subsurface picture makes it invaluable in complex urban sites where precision is paramount.
Discover how our Ground Penetrating Radar solutions can support your next project.
How To Integrate Concrete Radar Into Your Construction Workflow
To maximise the benefits of concrete radar, consider the following integration points:
Early Design Phase
Incorporate concrete radar scanning early in the design and planning stages. This helps identify constraints, avoid clashes, and plan for necessary penetrations or reinforcements.
Pre-Drilling And Cutting
Always scan before coring, drilling, or cutting concrete. This prevents damage to structural reinforcement or services and ensures compliance with safety standards.
Quality Assurance
Use concrete radar to verify slab thickness and reinforcement placement after pouring. This confirms workmanship quality without destructive testing.
Maintenance And Structural Health Monitoring
Schedule regular scans to monitor for developing cracks, voids, or delamination in existing structures. Early detection can save significant repair costs.
Limitations Of Concrete Radar
While concrete radar is a powerful tool, it’s important to understand its limitations:
- Depth Penetration: Typically limited to around 300-400mm in concrete; deeper scans may require alternative methods.
- Material Composition Impact: Highly conductive or dense materials can affect signal clarity.
- Data Interpretation: Accurate results require trained professionals to analyse radar signals correctly.
- Surface Conditions: Uneven or rough surfaces can reduce scan quality.
Knowing these factors ensures realistic expectations and proper use.
Concrete radar technology is reshaping the way construction projects in Brisbane and across Australia are planned, executed, and maintained. Its non-destructive nature, combined with real-time and accurate subsurface imaging, makes it a vital tool for improving safety, efficiency, and project outcomes.
By integrating concrete radar scanning into your project workflows, you reduce risks, avoid costly mistakes, and gain peace of mind knowing that critical structural elements are safeguarded. Our experienced team would love to help you with your concrete radar needs – just reach out to us via our easy online contact form, or give us a call!
