TMR Brisbane – Flyover Relieving Slab GPR

Case study: road infrastructure

Finding loss of support beneath a live flyover, overnight

A state road authority suspected voiding beneath the relieving slabs of a Brisbane flyover. We scanned the full carriageway in a single night shift and gave the engineering team a georeferenced picture of where to look next.

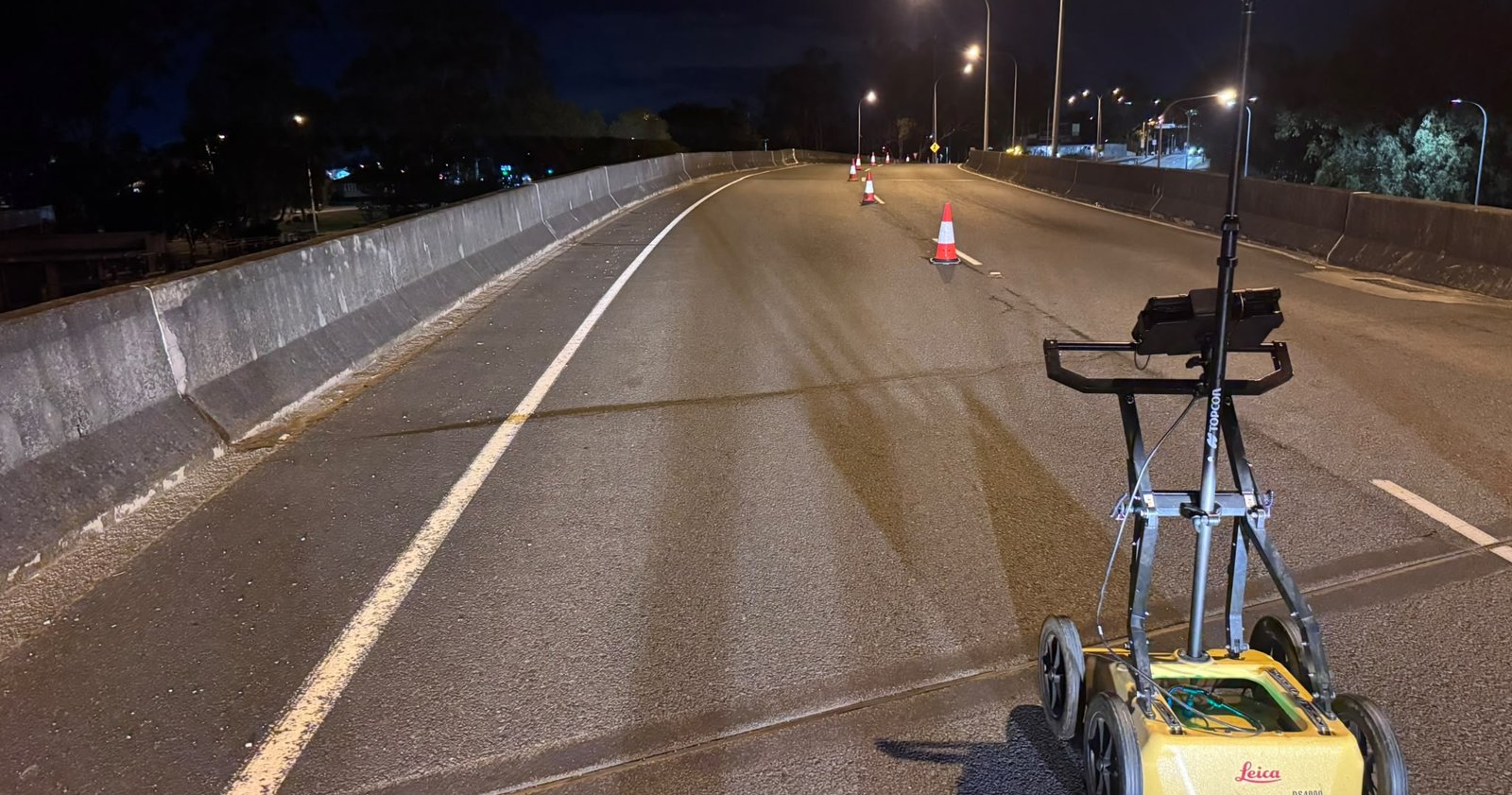

Leica DS4000 dual-frequency GPR cart with GNSS antenna on a closed flyover carriageway at night

The Leica DS4000 dual-frequency GPR with GNSS positioning, working under lane closure on the night of the survey.

ClientState road authority
AssetElevated flyover, Brisbane
Area scannedApprox. 620 m², full width
Site timeOne night shift
ServiceRelieving slab void and loss of support investigation
EquipmentLeica DS4000 GPR with GNSS
Frequencies200 MHz and 900 MHz, simultaneous
ReportInterim, issued for discussion
The problem

A slab built to hide settlement, and a suspicion it was losing support

Relieving slabs sit beneath the pavement where an embankment meets a bridge structure. They span the transition so that settlement of the fill does not show up as a bump at the joint.

When fill washes out or settles beneath a relieving slab, the slab loses support, and the first signs at the surface are usually subtle.

The client called late on a Thursday night. The road could only be closed at night, and their engineers needed answers to three questions.

01
Is there voiding beneath the slabs?

At the relieving slab at each end of the flyover.

02
How far does it extend?

Extent would shape any intrusive checks and remediation that followed.

03
Does anything else beneath the carriageway need attention?

The full width and length between the expansion joints, not just the slabs.

What we did

Two antennas, one pass, one night on site

Running both frequencies at once was the decision that kept the job to a single shift. The 900 MHz antenna resolves the asphalt and the top of the concrete. The 200 MHz antenna sees through the reinforcement to the base of the slab and below.

01
Plan

We scoped the job on the call: one technician on a night shift, and one business day of processing and reporting. The client organised traffic control.

02
Scan

Parallel swaths across the full width of the carriageway at 200 MHz and 900 MHz simultaneously, every swath positioned by GNSS.

03
Process

Data processed in Geolitix into georeferenced depth slices over aerial imagery, with the interpretation checked by an independent GPR specialist before it went to the client.

04
Report

An interim report for discussion with the engineering team, plain-language callouts on every drawing, a clear statement of what the data could and could not show, and an interactive web viewer holding the full dataset.

200 MHzThrough the reinforcement to the slab base and below
900 MHzAsphalt and the upper part of the concrete
~62 mJoint to joint, full carriageway width
GNSSEvery swath georeferenced over aerial imagery
Findings along the carriageway

The responses ran to the edge of the survey at both ends

Laid out along the 62m survey, the two slab responses sit at either end. In between are three other responses, each of which had to be separated from anything resembling a void.

Schematic plan of the surveyed carriageway with the location of each finding A plan strip of the carriageway, about 62 metres long, with the northern survey limit at the left. A Category A response at the northern slab runs off the left edge. A Category C drainage response sits at the western edge between 7 and 12 metres. A Category B transverse band crosses the full width at about 36 metres. A Category B elongated reflector sits in the eastern lane between 48 and 53 metres. The strongest Category A response covers the full width over the last 8 metres and runs off the right edge, overlapped on the eastern side by a Category B near-surface response recorded at 900 MHz. East lane West lane Northern survey limit Southern survey limit Northern slab Strong reflector Near-surface, 900 MHz Drainage Transverse band Southern slab 0 10 20 30 40 50 60 Approximate distance from the northern survey limit (m)
Category A: indicative of void or loss of support Category B: cause undetermined Category C: drainage or services Recorded at 900 MHz only
Strongest response ~8 m

Across the full width beneath the southern slab, continuing to the survey limit.

Opposite slab Same kind

A response of the same character at the northern slab, less pronounced in extent and amplitude.

Findings classified 6

Two Category A, three Category B and one Category C, each described in consistent language.

Schematic only. Positions are approximate and taken from the interim report. The northern slab response is not dimensioned, as its full extent was not captured.

What the data showed

Reverberation the slab alone does not explain

Beneath both relieving slabs, the radar returned strong, reverberating reflections that the slab alone does not explain. The response at one end was markedly stronger and more extensive than at the other.

Responses of this kind are indicative, by observation, of loss of support or washout beneath the slab, rather than a large, clearly defined cavity. Neither slab showed the discrete top and base reflections that would bound one.

200 MHz GPR depth slice over aerial imagery showing a high-amplitude zone beneath a flyover relieving slab, indicative of possible loss of support

200 MHz depth slice at one end of the flyover. Red marks strong reflections, and the zone continues to the edge of the survey.

GPR radargrams of the same swath at 200 MHz and 900 MHz, showing reverberating responses beneath both relieving slabs and a drainage response

The same swath at 200 MHz (top) and 900 MHz (bottom). The 200 MHz signal carries far more information below the reinforcement.

Classifying the findings

Not every bright spot is a void

Part of the job is saying which responses are not voids. To keep the language consistent from the first page of the report to the last, every finding was placed in one of three categories.

200 MHz GPR depth slice showing an elongated strong reflector in one lane, possibly metallic and not classified as a void

A strong, elongated reflector in one lane. Its ringing signature points to a metallic object, so it was reported as that, not as a void.

A

Indicative, by observation, of void or loss of support.

B

Anomalous response, cause undetermined.

C

Consistent with drainage infrastructure or services.

Alongside the two slabs, the survey picked up a localised response consistent with drainage at the edge of the carriageway, a transverse band of unknown cause near mid-length, and a near-surface response over the more affected slab that showed only at 900 MHz.

Why it mattered

Findings to act on within days, without breaking out the pavement

The client's engineers received a georeferenced dataset and a report they could act on within days of the first phone call. The report identified where intrusive checks should go, flagged that the responses ran to the edge of the nominated area, and recommended extending the scan at both ends so the full extent can be mapped before any remediation is designed.

What the survey established
  • Responses consistent with loss of support beneath both relieving slabs
  • Which slab carries the stronger response, and where it is strongest
  • Three other responses classified, none of them reported as a void
  • A georeferenced baseline for a repeat survey after remediation
What remains open
  • Full extent, as the responses at both slabs run past the survey limits
  • Thickness and volume of any void, which 200 MHz data cannot resolve
  • Depths, which are held back until the signal velocity is calibrated against a core
  • Cause and structural significance, which sit with the structural and geotechnical engineers
An interim finding, not a conclusion

The report was issued for discussion with the client's engineering team. It recommends verification by intrusive means at locations nominated by the engineer, preceded by service clearance, before any finding is relied upon for design or remediation.

Running both frequencies at once meant one night on site instead of two. Being disciplined about what the data shows, and what it does not, gave the engineers findings they could rely on and a clear list of what still needed testing.
